￥0.00
CMP接管型非铠防爆格兰（A2FRC系列）
- 品牌:CMP
- 起订:20只
- 供应:500只
- 发货:60天内

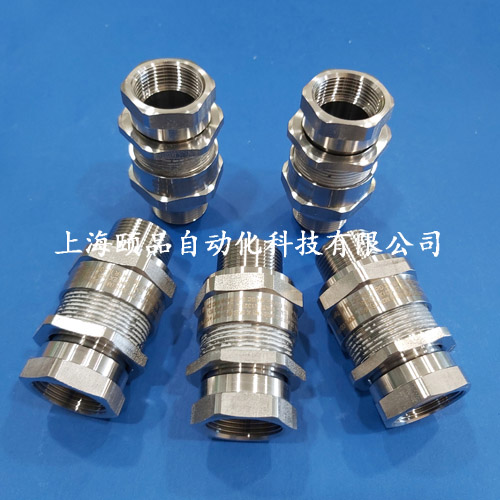

CMP接管型非铠防爆格兰（A2FRC系列）
CMP接管型非铠防爆格兰（A2FRC系列）
Metric Thread-EPIN AUTOMATION CMP接管式防爆格兰系列（CMP A2FRC Cable glands）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
A2FRC Cable Gland explosive atmosphere globally approved, rigid flexible conduit gland
A2FRC Cable Gland，explosive atmosphere globally approved, rigid flexible conduit gland
Globally Approved, Rigid Flexible Conduit Explosive Atmosphere Cable Gland
Designed for rigid flexible conduits；Easy install running coupler design
Displacement type flameproof seal；Globally marked, IECEx, ATEX CSA
-60°C to130°C； For all types of Unarmoured Braid Armour Cables housed in Conduit
Product Table（选型表格）
| Cable Gland Size |
Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) |
Female Connection Thread 'G' |
Female Connection Thread (NPT) 'G' |
Overall Cable Diameter 'A' |
Across Flats 'D' |
Across Corners 'D' |
Protrusion Length 'F' |
Combined Ordering Reference (*Brass Metric male and female) |
Shroud | Cable Gland Weight (Kgs) |
|||||||
| Standard | Option | ||||||||||||||||
| Metric | Thread Length (Metric) 'E' |
NPT | Thread Length (NPT) 'E' |
NPT | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||||
| 20S16 | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 3.2 | 8.7 | 24.0 | 26.4 | 46.9 | 20S16 | A2FRC | 1RA | PVC04 | 0.11 |
| 20S | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 6.1 | 11.7 | 24.0 | 26.4 | 46.1 | 20S | A2FRC | 1RA | PVC04 | 0.11 |
| 20 | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 6.5 | 14.0 | 27.0 | 29.7 | 47.9 | 20 | A2FRC | 1RA | PVC05 | 0.11 |
| 25 | M25 | 15.0 | ¾' | 20.2 | 1" | M25 | ¾' | 11.1 | 20.0 | 36.0 | 39.6 | 56.1 | 25 | A2FRC | 1RA | PVC09 | 0.20 |
| 32 | M32 | 15.0 | 1' | 25.0 | 1 ¼" | M32 | 1' | 17.0 | 26.3 | 41.0 | 45.1 | 55.5 | 32 | A2FRC | 1RA | PVC10 | 0.24 |
| 40 | M40 | 15.0 | 1 ¼' | 25.6 | 1 ½" | M40 | 1 ¼' | 23.5 | 32.2 | 50.0 | 55.0 | 57.7 | 40 | A2FRC | 1RA | PVC13 | 0.33 |
| 50S | M50 | 15.0 | 1 ½' | 26.1 | 2" | M50 | 1 ½' | 31.0 | 38.2 | 55.0 | 60.5 | 59.1 | 50S | A2FRC | 1RA | PVC15 | 0.43 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 ½" | M50 | 2' | 35.6 | 44.0 | 60.0 | 66.0 | 64.3 | 50 | A2FRC | 1RA | PVC18 | 0.44 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 ½" | M63 | 2' | 41.5 | 49.9 | 70.5 | 77.6 | 61.6 | 63S | A2FRC | 1RA | PVC21 | 0.72 |
| 63 | M63 | 15.0 | 2 ½' | 39.9 | 3" | M63 | 2 ½' | 47.2 | 55.9 | 75.0 | 82.5 | 71.0 | 63 | A2FRC | 1RA | PVC23 | 0.64 |
| 75S | M75 | 15.0 | 2 ½' | 39.9 | 3" | M75 | 2 ½' | 54.0 | 61.9 | 84.0 | 92.4 | 70.1 | 75S | A2FRC | 1RA | PVC26 | 0.96 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 ½" | M75 | 3' | 61.1 | 67.9 | 84.0 | 92.4 | 73.2 | 75 | A2FRC | 1RA | PVC26 | 0.86 |
| 90 | M90 | 24.0 | 3 ½' | 42.8 | 4" | M90 | 3 ½' | 66.6 | 79.9 | 108.0 | 118.8 | 106.3 | 90 | A2FRC | 1RA | PVC31 | 2.25 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
TECHNICAL ILLUSTRATION
