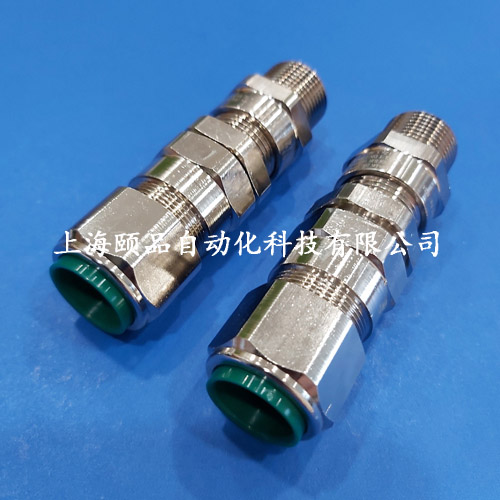

E1FX | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For Braid & Steel Tape Armoured Cables
Internationally Approved, Explosive Atmosphere Cable Gland
• metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)
• -60°C to +130°C
• Class I Zone 1, 21 ａnd Zone 2, 22 Class I Division 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance
Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).
PRODUCT SELECTION TABLE
| Cable Gland Size |
Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) |
Cable
Bedding
Diameter
＇A＇ |
Overall
Cable
Diameter
＇B＇ |
Armour Range †
Grooved Cone (X) |
Across
Flats
＇D＇ |
Across
Corners
＇D＇ |
Protrusion
Length ＇F＇ |
Combined Ordering Reference
(*Brass Metric) |
Shroud |
Cable
Gland
Weight
(Kgs) |
| Standard |
Option |
| Metric |
Thread Length (Metric) ＇E＇ |
NPT |
Thread Length
(NPT) ＇E＇ |
NPT |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Max |
Size |
Type |
Ordering
Suffix |
| 20S16 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
3.1 |
8.6 |
6.1 |
13.1 |
0.3 |
1.0 |
24.0 |
26.4 |
72.5 |
20S16 |
E1FX |
1RA |
PVC04 |
0.16 |
| 20S |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.1 |
11.6 |
9.5 |
15.9 |
0.3 |
1.0 |
24.0 |
26.4 |
70.0 |
20S |
E1FX |
1RA |
PVC04 |
0.15 |
| 20 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.5 |
13.9 |
12.5 |
20.9 |
0.4 |
1.0 |
30.5 |
33.6 |
73.0 |
20 |
E1FX |
1RA |
PVC06 |
0.21 |
| 25S |
M25 |
15.0 |
¾＇ |
20.2 |
1" |
11.1 |
19.9 |
14.0 |
22.0 |
0.4 |
1.2 |
37.5 |
41.3 |
89.0 |
25S |
E1FX |
1RA |
PVC09 |
0.33 |
| 25 |
M25 |
15.0 |
¾＇ |
20.2 |
1" |
11.1 |
19.9 |
18.2 |
26.2 |
0.4 |
1.2 |
37.5 |
41.3 |
89.0 |
25 |
E1FX |
1RA |
PVC09 |
0.33 |
| 32 |
M32 |
15.0 |
1＇ |
25.0 |
1 ¼" |
17.0 |
26.2 |
23.7 |
33.9 |
0.4 |
1.2 |
46.0 |
50.6 |
86.0 |
32 |
E1FX |
1RA |
PVC11 |
0.43 |
| 40 |
M40 |
15.0 |
1 ¼＇ |
25.6 |
1 ½" |
22.0 |
32.1 |
27.9 |
40.4 |
0.4 |
1.6 |
55.0 |
60.5 |
90.0 |
40 |
E1FX |
1RA |
PVC15 |
0.62 |
| 50S |
M50 |
15.0 |
1 ½＇ |
26.1 |
2" |
29.5 |
38.1 |
35.2 |
46.7 |
0.4 |
1.6 |
60.0 |
66.0 |
91.0 |
50S |
E1FX |
1RA |
PVC18 |
0.75 |
| 50 |
M50 |
15.0 |
2＇ |
26.9 |
2 ½" |
35.6 |
44.0 |
40.4 |
53.0 |
0.6 |
1.6 |
70.1 |
77.1 |
95.0 |
50 |
E1FX |
1RA |
PVC21 |
0.95 |
| 63S |
M63 |
15.0 |
2＇ |
26.9 |
2 ½" |
40.1 |
49.9 |
45.6 |
59.4 |
0.6 |
1.6 |
75.0 |
82.5 |
102.0 |
63S |
E1FX |
1RA |
PVC23 |
1.34 |
| 63 |
M63 |
15.0 |
2 ½＇ |
39.9 |
3" |
47.2 |
55.9 |
54.6 |
65.8 |
0.6 |
1.6 |
80.0 |
88.0 |
104.0 |
63 |
E1FX |
1RA |
PVC25 |
1.34 |
| 75S |
M75 |
15.0 |
2 ½＇ |
39.9 |
3" |
52.8 |
61.9 |
59.0 |
72.0 |
0.6 |
1.6 |
90.0 |
99.0 |
115.0 |
75S |
E1FX |
1RA |
PVC28 |
2.11 |
| 75 |
M75 |
15.0 |
3＇ |
41.5 |
3 ½" |
59.1 |
67.9 |
66.7 |
78.4 |
0.6 |
1.6 |
100.0 |
110.0 |
117.0 |
75 |
E1FX |
1RA |
PVC30 |
2.42 |
| 90 |
M90 |
24.0 |
3 ½＇ |
42.8 |
4" |
66.6 |
78.6 |
76.2 |
90.3 |
0.8 |
1.6 |
114.3 |
125.4 |
147.0 |
90 |
E1FX |
1RA |
PVC32 |
4.21 |
| 100 |
M100 |
24.0 |
3 ½＇ |
42.8 |
4" |
76.0 |
90.9 |
86.1 |
101.4 |
0.8 |
1.6 |
123.0 |
135.3 |
140.0 |
100 |
E1FX |
1RA |
LSF33 |
4.45 |
| 115 |
M115 |
24.0 |
4" |
44.0 |
5" |
86.0 |
97.9 |
101.5 |
110.2 |
0.8 |
1.6 |
133.4 |
146.7 |
162.0 |
115 |
E1FX |
1RA |
LSF34 |
6.19 |
| 130 |
M130 |
24.0 |
5" |
46.8 |
- |
97.0 |
114.9 |
110.2 |
123.2 |
0.8 |
1.6 |
152.4 |
167.6 |
174.0 |
130 |
E1FX |
1RA |
LSF35 |
8.34 |
| Dimensions displayed in millimeters unless otherwise stated |
