￥0.00

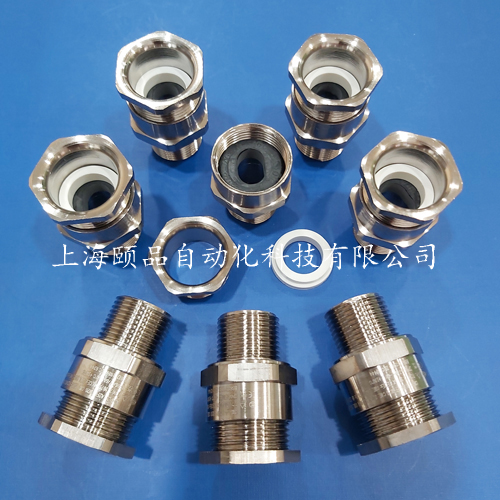

CMP非铠扁电缆电伴热配套防爆格兰（A2F-FF系列）
- 品牌:CMP防爆格兰
- 起订:20只
- 供应:500只
- 发货:90天内
CMP非铠扁孔防爆格兰密封接头（A2F-FF系列）
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP非铠扁孔防爆格兰密封接头（A2F-FF系列）
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP非铠扁电缆电伴热配套防爆格兰（A2F-FF系列）
A2F-FF | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Flat-Form Unarmoured & Braid Armour Cables
CMP防爆格兰代理商：上海颐品自动化科技有限公司关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
A2F-FF | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Flat-Form Unarmoured & Braid Armour Cables
Internationally Approved, Flat-Form Explosive Atmosphere Cable Gland
• Designed for flat-form / heat trace cables
• Displacement type flameproof seal
• Deluge protected
• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option available, A2FFFHT)
• Internationally marked, IECEx & ATEX
Note: Flat-form seals available for alternative Cable Glands upon request
| Cable Gland Size | Available Entry Threads '"C'"(Alternate Metric Thread Lengths Available) | Overall Cable Diameter '"A'" (h x w) |
Across Flats '"D'" |
Across Corners '"D'" |
Protrusion Length '"F'" |
Combined Ordering Reference (Brass Metric) |
Cable Gland Weight (Kgs) |
|||||||
| Standard | Option | |||||||||||||
| Metric | Thread Length (Metric) '"E"' | NPT | Thread Length (NPT) '"E'" |
NPT | Min | Max | Max | Max | Size | Type | Ordering Suffix |
|||
| 20S | M20 | 15.0 | 1/2'" | 19.9 | 3/4'" | 4.0 x 6.2 | 6.8 x 11.7 | 24.0 | 26.4 | 25.1 | 20S | A2FFF | 1RA | 0.054 |
| 20 | M20 | 15.0 | 1/2'" | 19.9 | 3/4'" | 5.7 x 8.0 | 8.7 x 13.5 | 27.0 | 29.7 | 27.2 | 20 | A2FFF | 1RA | 0.059 |
| Dimensions are displayed in millimetres unless otherwise stated | ||||||||||||||
TECHNICAL ILLUSTRATION
CMP非铠扁孔防爆格兰密封接头（A2F-FF系列）
CMP非铠扁电缆电伴热配套防爆格兰（A2F-FF系列）
A2F-FF | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Flat-Form Unarmoured & Braid Armour Cables
CMP防爆格兰代理商：上海颐品自动化科技有限公司关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
