HS31U支耳式蝶阀，不锈钢支耳式蝶阀

2025-01-08 15:20  浏览:362162
搜矿价：
10.00元/个
品牌：
福建博雷阀门
制造商：
福建博雷阀门
适用环境：
煤矿,非金属矿,建材矿
安标证号：
无需办理
起订：
1 个
供货总量：
10000 个
运费承担：
卖家承担
所在地：
福建 泉州市
有效期至：
长期有效
  • 商品详情
  • 评价详情(0)
  • 交易记录()

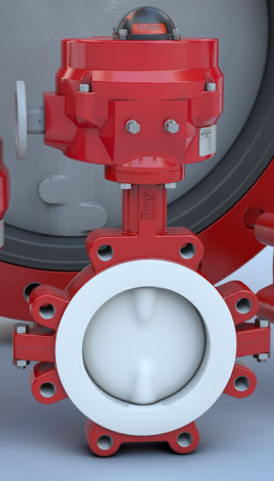

 HS31U支耳式蝶阀



Specifications

· Size Range:2” – 20” (50mm – 500mm)

· Body Style:Lug

· Temperature Range:-20°F to 250°F (-29°C to 121°C)

· Pressure Ratings:Bidirectional Bubble-tight Shutoff: 250 psi (17.2 Bar)
Dead-End Service Shutoff: 250 psi (17.2 Bar)
Body (CWP): 250 psi (17.2 Bar)

· Body Materials:Cast Iron, Ductile Iron

· Disc Materials:Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel

· Stem Materials:Stainless Steel

· Seat Materials:Bonded BUNA-N, Bonded EPDM

· Applications:High Pressure, HVAC, Dead-End service

Series 31H Lug resilient seated butterfly valves are drilled and tapped to meet ASME Class 125/150 and PN16 flanges. Series 31H Valves will not be automated.

 HS31U支耳式蝶阀



Specifications

· Size Range:2” – 20” (50mm – 500mm)

· Body Style:Lug

· Temperature Range:-20°F to 250°F (-29°C to 121°C)

· Pressure Ratings:Bidirectional Bubble-tight Shutoff: 250 psi (17.2 Bar)
Dead-End Service Shutoff: 250 psi (17.2 Bar)
Body (CWP): 250 psi (17.2 Bar)

· Body Materials:Cast Iron, Ductile Iron

· Disc Materials:Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel

· Stem Materials:Stainless Steel

· Seat Materials:Bonded BUNA-N, Bonded EPDM

· Applications:High Pressure, HVAC, Dead-End service

Series 31H Lug resilient seated butterfly valves are drilled and tapped to meet ASME Class 125/150 and PN16 flanges. Series 31H Valves will not be automated.
