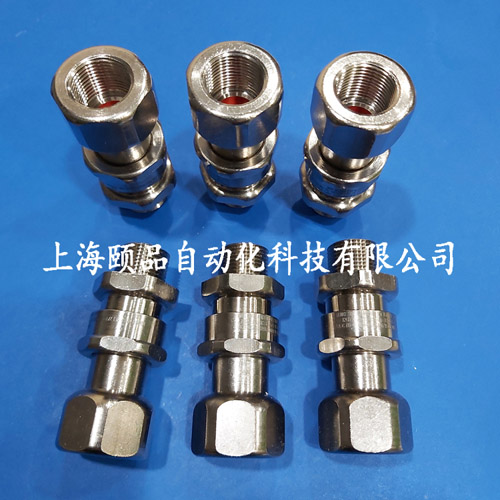

Hawke非铠接管式防爆格兰（501/414系列）
Hawke防爆格兰代理商：上海颐品自动化科技有限公司
关键词：Hawke防爆格兰，Hawke防爆葛兰，Hawke防爆填料函，Hawke防爆密封接头
Hawke非铠防爆格兰，Hawke铠装防爆格兰，Hawke防爆变径，Hawke防爆呼吸阀堵头Hawke 501/414 seris Cable glands
Hawke非铠接管式防爆格兰（501/414系列）
Hawke代理商：上海颐品自动化科技有限公司
Hazardous Area Cable Glands from Hawke
Hawke 501/414 cable glands are suitable for use with non-armoured elastomer and plastic insulated cables installed in conduit for both outdoor and indoor use.
Hawke 501/414 cable glands are dual certified Exd and Exe and suitable for installation in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC, 3.0-65.3mm outside cable diameters.
When used in increased safety applications the Hawke cable gland can be used to terminate braided cables where the braid and the cable outer sheath enter into the electrical enclosure or junction box.
♦ Exdb IIC Gb, Exe IIC Gb, Extb IIIC, Db Non-aromoured Cables ATEX & IECEx Cable Gland.
Hawke 501/414 cable gland is suitable for cable termination and installation in Zone 1 (21), Zone 2 (22) and Division 2 hazardous areas.
-
Flameproof Exdb
-
Increased Safety Exeb
-
Dust Extb
-
Dual Certified Cable Gland For Hazardous Areas ATEX – IECEx
HAWKE 501/414 CABLE GLAND TECHNICAL SPECIFICATION
-
Hazardous Area Cable Gland Classification – Exdb IIC Gb, Exeb IIC Gb, Extb IIIC Db
-
Certificate No’s – baseefa06ATEX0056X and IECEx BAS 06.0013X
-
Cable Gland Zone Location – Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC
-
Construction and Test Standards – IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
-
Ingress Protection – IP66, IP67 and IP 68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
-
Deluge Protection – DTS01
-
Operating Temperature Range -60°C to +100°C
CABLE GLAND SELECTION TABLE FOR HAWKE 501/414
| Hawke Size Ref. | Male Entry Thread Size | Female Entry Thread Size | Cable Acceptance Details | ‘G’ Compressed Length | Hexagon Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Sheath ‘B’ | ||||||||||||
| Metric | NPT * | Metric | NPT # | Standard Seal | Alternative (S) Seal | Across Flats | Across Corners | |||||
| Standard | Option | Min. | Max. | Min. | Max. | |||||||
| Os | M20 ‡ | ½” | – | M20 | – | 3.0 | 8.0 | – | – | 54.5 | 24.0 | 26.5 |
| O | M20 ‡ | ½” | – | M20 | – | 6.5 | 11.9 | – | – | 54.5 | 24.0 | 26.5 |
| A | M20 | ¾” | ½” | M20 | – | 10.0 | 14.3 | 9.0 | 13.4 | 56.4 | 30.0 | 32.5 |
| B | M25 | 1″ | ¾” | M25 | – | 13.0 | 20.2 | 9.5 | 15.4 | 48.2 | 36.0 | 39.5 |
| C | M32 | 1¼” | 1″ | M32 | – | 19.0 | 26.5 | 15.5 | 21.2 | 61.6 | 46.0 | 50.5 |
| C2 | M40 | 1½” | 1¼” | M40 | – | 25.0 | 32.5 | 22.0 | 28.0 | 64.6 | 55.0 | 60.6 |
| D | M50 | 2″ | 1½” | M50 | – | 31.5 | 44.4/42.3 † | 27.5 | 34.8 | 83.2 | 65.0 | 70.8 |
| E | M63 | 2½” | 2″ | M63 | – | 42.5 | 56.3/54.3 † | 39.0 | 46.5 | 83.2 | 80.0 | 88.0 |
| F | M75 | 3″ | 2½” | M75 | – | 54.5 | 68.2/65.3 † | 49.5 | 58.3 | 86.4 | 95.0 | 104.0 |
