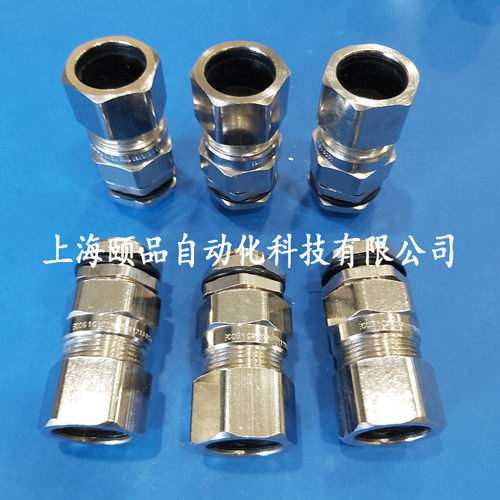

CCG铠装防爆格兰密封接头（0523-E1EX系列）
CCG铠装防爆格兰密封接头（0523-E1EX系列）
CCG铠装防爆格兰密封接头（0523-E1EX系列）
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
CCG防爆格兰系列（CCG Cable glands）
Hazardous Area Cable Glands-Group II/III
CCG防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线箱
CCG防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
Product Description
Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
Features and Benefits
For indoors, outdoors, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
Two part handling, no loose parts.
Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
Patented disconnect system allows for inspection of armour clamp and inner seal after assembly.
With a patented Variable Deluge Seal™ as standard.
Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner and outer sheath of the cable to IP65/66/68.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
Complete with thread sealing gasket
Optional Accessories / Tools
Code
Min (A)
Max (A)
Min (B)
Max (B)
Length (L2)
Min (F)
Max (F)
Entry
Thread (C)
Length (L1)
052316E1EX
3
8.5
8
13.5
75
0.2
1.25
M16 x 1.5
15
052300E1EX
3
8.5
8
13.5
75
0.2
1.25
M20 x 1.5
15
0523-0E1EX
7
12
11.5
16
75
0.2
1.25
M20 x 1.5
15
052301E1EX
9
15
14.5
20.5
78
0.2
1.25
M20 x 1.5
15
052302E1EX
14
20
20.5
26.5
85
0.2
1.6
M25 x 1.5
15
052303E1EX
19
26.5
26.5
33.5
91
0.2
2
M32 x 1.5
15
052304E1EX
26
34
33
42.5
108
0.3
2
M40 x 1.5
15
052305E1EX
34
44.5
42.5
52.5
117
0.4
2.5
M50 x 1.5
15
052306E1EX
44
56.5
52.5
65.5
145
0.4
2.5
M63 x 1.5
15
052307E1EX
56
67.5
65.5
78
153
0.4
3.15
M75 x 1.5
15
052308E1EX
59
69
65
77.5
215
2.5
3.15
M80 x 2.0
20
052309E1EX
74
81.5
82
91
224
3
3.5
M90 x 2.0
20
052310E1EX
81
91
90
100
229
3
3.5
M100 x 2.0
20
CCG防爆格兰系列（CCG Cable glands）
Hazardous Area Cable Glands-Group II/IIIGroup II/III Marine
CCG防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线箱
CCG防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
CCG铠装防爆格兰密封接头（0523-E1EX系列）
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
CCG防爆格兰系列（CCG Cable glands）
Hazardous Area Cable Glands-Group II/III
CCG防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线箱
CCG防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
Features and Benefits
For indoors, outdoors, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
Two part handling, no loose parts.
Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
Patented disconnect system allows for inspection of armour clamp and inner seal after assembly.
With a patented Variable Deluge Seal™ as standard.
Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner and outer sheath of the cable to IP65/66/68.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
Complete with thread sealing gasket
Optional Accessories / Tools
| Code | Min (A) | Max (A) | Min (B) | Max (B) | Length (L2) | Min (F) | Max (F) | Entry Thread (C) |
Length (L1) |
| 052316E1EX | 3 | 8.5 | 8 | 13.5 | 75 | 0.2 | 1.25 | M16 x 1.5 | 15 |
| 052300E1EX | 3 | 8.5 | 8 | 13.5 | 75 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 0523-0E1EX | 7 | 12 | 11.5 | 16 | 75 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 052301E1EX | 9 | 15 | 14.5 | 20.5 | 78 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 052302E1EX | 14 | 20 | 20.5 | 26.5 | 85 | 0.2 | 1.6 | M25 x 1.5 | 15 |
| 052303E1EX | 19 | 26.5 | 26.5 | 33.5 | 91 | 0.2 | 2 | M32 x 1.5 | 15 |
| 052304E1EX | 26 | 34 | 33 | 42.5 | 108 | 0.3 | 2 | M40 x 1.5 | 15 |
| 052305E1EX | 34 | 44.5 | 42.5 | 52.5 | 117 | 0.4 | 2.5 | M50 x 1.5 | 15 |
| 052306E1EX | 44 | 56.5 | 52.5 | 65.5 | 145 | 0.4 | 2.5 | M63 x 1.5 | 15 |
| 052307E1EX | 56 | 67.5 | 65.5 | 78 | 153 | 0.4 | 3.15 | M75 x 1.5 | 15 |
| 052308E1EX | 59 | 69 | 65 | 77.5 | 215 | 2.5 | 3.15 | M80 x 2.0 | 20 |
| 052309E1EX | 74 | 81.5 | 82 | 91 | 224 | 3 | 3.5 | M90 x 2.0 | 20 |
| 052310E1EX | 81 | 91 | 90 | 100 | 229 | 3 | 3.5 | M100 x 2.0 | 20 |
