Eaton-Cooper-Capri cable glands（Type：ADCC）
Eaton库柏代理商：上海颐品自动化科技有限公司
上海颐品自动化，关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线盒
关键词：Peppers防爆格兰，Peppers防爆变径，Peppers防爆堵头，Peppers防爆呼吸阀
关键词：Hawke防爆格兰，Hawke防爆变径，Hawke防爆堵头，Hawke防爆呼吸阀，防爆接线箱
关键词：Eaton防爆格兰，Eaton防爆变径，Eaton防爆堵头，Eaton防爆呼吸阀，Eaton防爆接线箱
关键词：OSCG防爆格兰，OSCG防爆变径，OSCG防爆堵头，OSCG防爆呼吸阀，OSCG防爆接线箱

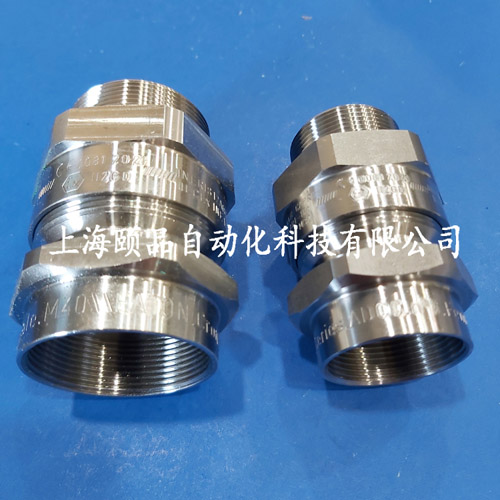

Eaton-Capri库柏非铠接管式防爆格兰(ADCC系列)
Eaton库柏代理商：上海颐品自动化科技有限公司
Applications:
ADE conduit glands enable direct connection to rigid or flexible conduit while allowing cable to pass through the gland.
This allows the cable to have extra protection, especially in extreme environments.
They are available in nickel-plated brass or stainless steel to give increased corrosion resistance.
Key features & benefits:
• Nickel-plated brass for superior corrosion resistance. 316L stainless steel option available.
It is recommended that a suitable lubricant is used on all threads of stainless steel versions.
• Best solution for extreme temperatures: -60°C to +140°C
• Maintains Ex-d and Ex-e protection
• Removable silicone dust cover protects from ingress before cable assembly
• Full coverage of all sizes M20 to M110 and 1/2" - 4" NPT
• Multiple female thread options (ISO, NPT, BSPP), enabling interface to different conduit sizes
• ADCC has a compact design with 20% weight saving compared to competitors
• IP66 / IP68 according to the method of attachment and the condition of the equipment area
ADCC conduit glands
Capri ADCS & ADCC - Cable glands for flexible & rigid conduits
The ADCC and ADCS is a widely approved cable gland for use connecting a cable and conduit system.
With a range of materials and male and female thread options to cover all requirements.
The ADCC is a fixed connection the ADCS incorporates a swivel design to allow for use with long rigid
conduit runs. Should be used in conjunction with appropriate termination for flexible conduits.
Available as gland only or in pre-packed kit form for ease of ordering. Refer to our ADE Gland Accessories
for further matching accessories.
PROTECTION TYPE
Flameproof Ex db, Increased Safety Ex eb,
Restricted Breathing Ex nR, Dust Ex tb
AREA CLASSIFICATION
Zones 1 and 2, Groups I, IIA, IIB and IIC Zones 21 and 22,
Groups IIIA, IIIB and IIIC
Cable types
Non-armored cable
Cable with insulated conductors, with no layer of mechanical (metallic) protection.
Marine shipboard cable
Non-armored cable designed specially for marine applications.
Tray cable
Tray cable designed for industrial high power applications.
Type P cable
Rugged non-armored cable designed specially for oil and gas drilling applications.
Protection category
ATEX：Approved in accordance to EU directives for explosive atmospheresIECEx：Approved in accordance to international IEC standards for equipment in explosive atmospheres
Other certificates: Inmetro, CCoE, EAC, KOSHA, & NEPSI.
Shipping applications: ABS, DNV, BV & Lloyds.
ADCC: threaded junction for rigid or flexible conduit
Provide female thread for conduit connection which includes a non-armoured cable run.
ADCS: swivel connection to rigid conduit
Provide female thread for rigid conduit connection and independent union for installation ease. Multiple female thread options available for rigid conduit.Designed and certified for use in the most severe environments
The Capri ADCC and ADCS are the best solutions for extreme operating temperatures from -60°C to +140°C.The seal material on Eaton's Capri series of cable glands has been carefully formulated to achieve optimal performance.
Rated to IP66 and IP68 the Capri ADCC and ADCS are dust-tight and can withstand being completely submerged in water continuously.
