Peppers非铠装防爆格兰密封接头（A系列）
Peppers防爆格兰代理商：上海颐品自动化科技有限公司

Peppers非铠装防爆格兰密封接头（A系列）


Peppers防爆格兰代理商：上海颐品自动化科技有限公司



关键词：Peppers防爆格兰，Peppers防爆变径，Peppers防爆堵头，Peppers防爆呼吸阀

上海颐品自动化，关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀

关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线盒
关键词：Peppers防爆格兰，Peppers防爆变径，Peppers防爆堵头，Peppers防爆呼吸阀
关键词：Hawke防爆格兰，Hawke防爆变径，Hawke防爆堵头，Hawke防爆呼吸阀，防爆接线箱
关键词：Eaton防爆格兰，Eaton防爆变径，Eaton防爆堵头，Eaton防爆呼吸阀，Eaton防爆接线箱
关键词：OSCG防爆格兰，OSCG防爆变径，OSCG防爆堵头，OSCG防爆呼吸阀，OSCG防爆接线箱

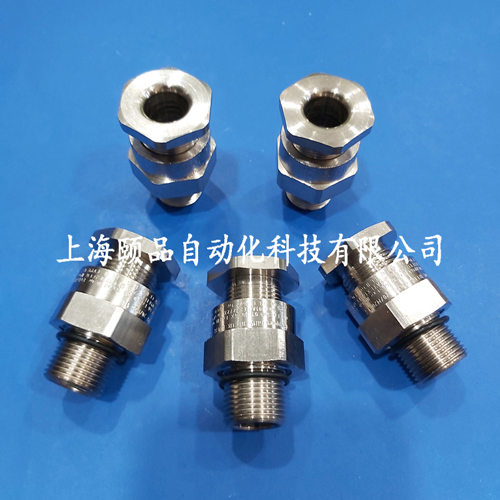

Peppers Cable Gland Type A - (Single Compression Gland for Unarmoured Cable)
“A” type glands are certified Flameproof Ex d, Increased Safety Ex e, Restricted Breathing Ex nR ａnd Dust Protected Ex ta.
They are suitable for use in Zone 1ａnd 2 for Gas Groups IIA, IIB ａnd IIC ａnd additionally for use in Zones 20, 21 ａnd 22
for Dust Groups IIIA, IIIB ａnd IIIC. Commonly referred to as “stuffingglands” they provide a controlled pull resistant environmental
displacement seal on the cable outer sheath, minimising damage to cables that exhibit “coldflow” characteristics.
The gland maintains IP66 & IP68 to 50 metres. It is supplied with an IP O-ring seal as standard on metric entry threads.
Options areavailable for use with LSOH cables ａnd extreme temperature applications.
Example Part Numbering(See below for details)
A2LBF/NP/20/M20
A Type of gland featuring controlled displacement sealing
2 Neoprene Seals (2) - Silicone (3) - Neoprene/Lead (1) - Silicone/Lead (4)
L Peppers Standard Designation；B Aluminium (A) / Brass (B) / Stainless Steel (S)
F Multiple Certification
Options
C PVC Shroud (C) - PVC Shroud (P) - Silicone LSOH Shroud (3)
K-V-H Locknut & Nylon (K), Fibre (V) or PTFE (H) IP Washer
T--Including Earth Tag；S--Including Serrated Washer，1--Quantity per kit，NP--Nickel Plated
20--Gland shell size，M20--M20 x 1.5mm Male Entry Thread
Optional，Accessories
Locknut Brass (ACBLN) / St Steel (ACSLN) / Aluminium (ACALN)
Earth tag Brass (ACBET) / St Steel (ACSET) / Aluminium (ACAET)
IP Washers Nylon (ACNSW) / Fibre (ACFSW) / PTFE (ACPSW)
Serrated Washers Stainless Steel (ACSSW)
Shrouds PVC (ACSPVC) / P-CP (ACSPCP) / Silicone LSOH (ACSSIO)

Peppers选型资料（M制螺纹）：上海颐品自动化科技有限公司

PeppersA2LBF 16/M20 16 M20x1.5 4.0 8.4 25.4 16.0 33.0

PeppersA2LBF 20s/M20 20s M20x1.5 7.2 11.7 25.4 16.0 33.0

PeppersA2LBF 20/M20 20 M20x1.5 9.6 14.0 30.0 16.0 33.0

PeppersA2LBF 25/M25 25 M25x1.5 13.5 20.0 37.6 16.0 33.0

PeppersA2LBF 32/M32 32 M32x1.5 19.5 26.3 46.0 16.0 33.0

PeppersA2LBF 40/M40 40 M40x1.5 23.0 32.2 55.0 16.0 37.0

PeppersA2LBF 50s/M50 50s M50x1.5 28.1 38.2 65.0 16.0 37.0

PeppersA2LBF 50/M50 50 M50x1.5 33.1 44.1 65.0 16.0 37.0

PeppersA2LBF 63s/M63 63s M63x1.5 39.2 50.1 80.0 19.0 37.0

PeppersA2LBF 63/M63 63 M63x1.5 46.7 56.0 80.0 19.0 37.0

PeppersA2LBF 75s/M75 75s M75x1.5 52.1 62.0 90.0 19.0 37.0

PeppersA2LBF 75/M75 75 M75x1.5 58.0 68.0 90.0 19.0 37.0

PeppersA2LBF 80/M80 80 M80x2.0 62.2 72.0 104.0 25.0 50.0

PeppersA2LBF 85/M85 85 M85x2.0 69.0 78.0 104.0 25.0 50.0

PeppersA2LBF 90/M90 90 M90x2.0 74.0 84.0 114.0 25.0 50.0

PeppersA2LBF 100/M100 100 M100x2.0 82.0 90.0 114.0 25.0 50.0

Peppers选型资料（NPT制螺纹）：上海颐品自动化科技有限公司

PeppersA2LBF 16/050NPT 16 NPT 1/2" 4.0 8.4 25.4 16.00 33.0

PeppersA2LBF 16/075NPT 16 NPT 3/4" 4.0 8.4 25.4 16.00 33.0

PeppersA2LBF 20s/050NPT 20s NPT 1/2" 7.2 11.7 25.4 16.00 33.0

PeppersA2LBF 20s/075NPT 20s NPT 3/4" 7.2 11.7 25.4 16.00 33.0

PeppersA2LBF 20/050NPT 20 NPT 1/2" 9.4 14.0 30.0 16.00 33.0

PeppersA2LBF 20/075NPT 20 NPT 3/4" 9.4 14.0 30.0 16.00 33.0

PeppersA2LBF 25/075NPT 25 NPT 3/4" 13.5 20.0 37.6 16.00 33.0

PeppersA2LBF 25/100NPT 25 NPT 1" 13.5 20.0 37.6 16.00 33.0

PeppersA2LBF 32/100NPT 32 NPT 1" 19.5 26.3 46.0 16.00 33.0

PeppersA2LBF 32/125NPT 32 NPT 1 1/4" 19.5 26.3 46.0 16.00 33.0

PeppersA2LBF 40/125NPT 40 NPT 1 1/4" 23.0 32.2 55.0 16.00 37.0

PeppersA2LBF 40/150NPT 40 NPT 1 1/2" 23.0 32.2 55.0 16.00 37.0

PeppersA2LBF 50s/150NPT 50s NPT 1 1/2" 28.1 38.2 65.0 16.00 37.0

PeppersA2LBF 50s/200NPT 50s NPT 2" 28.1 38.2 65.0 16.00 37.0

PeppersA2LBF 50/200NPT 50 NPT 2" 33.1 44.1 65.0 16.00 37.0

PeppersA2LBF 63s/200NPT 63s NPT 2" 39.2 50.1 80.0 19.00 37.0

PeppersA2LBF 63s/250NPT 63s NPT 2 1/2" 39.2 50.1 80.0 19.00 37.0

PeppersA2LBF 63/250NPT 63 NPT 2 1/2" 46.7 56.0 80.0 19.00 37.0

PeppersA2LBF 75s/250NPT 75s NPT 2 1/2" 52.1 62.0 90.0 19.00 37.0

PeppersA2LBF 75s/300NPT 75s NPT 3" 52.1 62.0 90.0 19.00 37.0

PeppersA2LBF 75/300NPT 75 NPT 3" 58.0 68.0 90.0 19.00 37.0

PeppersA2LBF 80/300NPT 80 NPT 3" 62.2 72.0 104.0 25.00 50.0

PeppersA2LBF 80/350NPT 80 NPT 3 1/2" 62.2 72.0 104.0 25.00 50.0

PeppersA2LBF 85/300NPT 85 NPT 3" 69.0 78.0 104.0 25.00 50.0

PeppersA2LBF 85/350NPT 85 NPT 3 1/2" 69.0 78.0 104.0 25.00 50.0

PeppersA2LBF 90/350NPT 90 NPT 3 1/2" 74.0 84.0 114.0 25.00 50.0

PeppersA2LBF 90/400NPT 90 NPT 4" 74.0 84.0 114.0 25.00 50.0

PeppersA2LBF 100/350NPT 100 NPT 3 1/2" 82.0 90.0 114.0 25.00 50.0

PeppersA2LBF 100/400NPT 100 NPT 4" 82.0 90.0 114.0 25.00 50.0

Peppers代理商：上海颐品自动化科技有限公司
